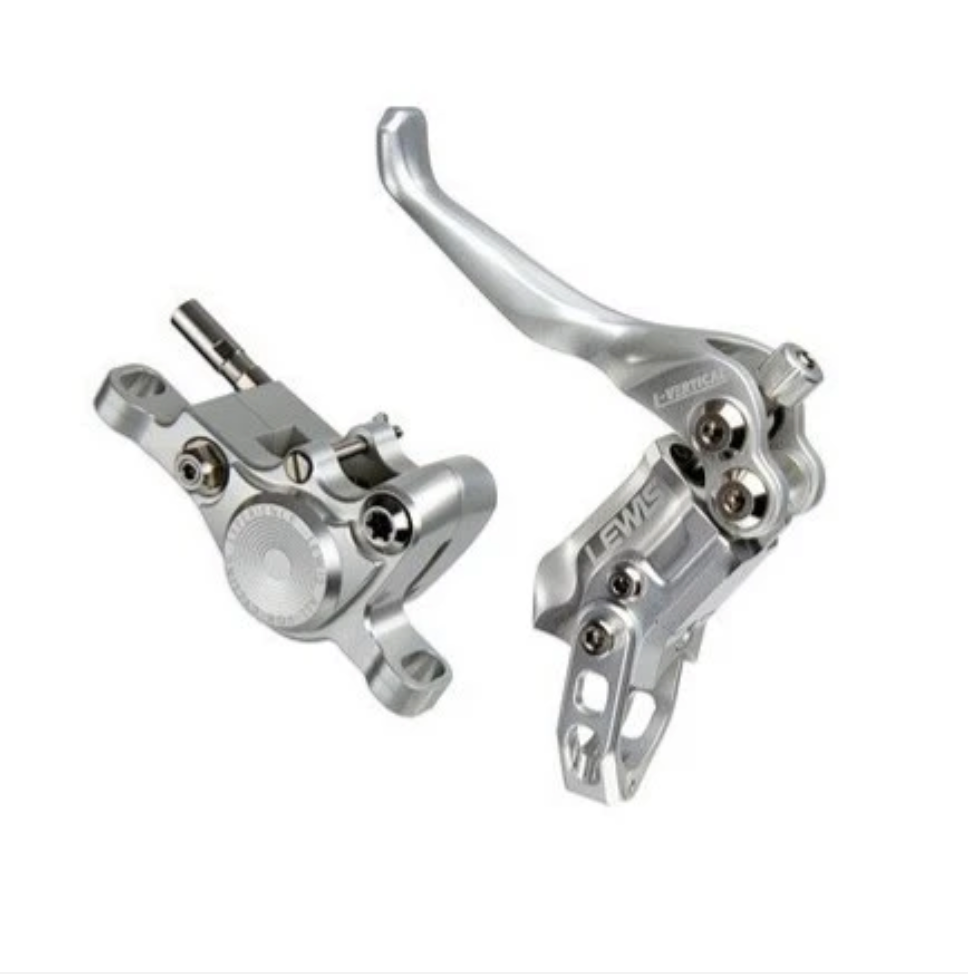

Introducing the Lewis LV-2 Disc Brake and Lever - a powerful, lightweight, and reliable Brake Kit designed specifically for BMX Racing enthusiasts. This is the ultimate choice for riders looking for top-notch performance and effortless maintenance.
The ultimate lightweight breaking system with unbeatable power for its size.
The LV2 is one of the lightest brakes on the market, and yet it is still powerful enough for Trials and Freestyle riders. This makes it the perfect set-up for a wide verity of bikes from race BMX, Cross-country, Trail, Dirt Jump, Park, Street, and Trials.
The LV2 can do it all with ease, style and amazing looks!
TECHNICAL SPECIFICATIONS
WEIGHT - Complete Set 206g ( Right Hand Lever, Housing and Rear Caliper )
Brake Pad - Lewis LP-30, TP-30
Hose length - 165cm
Olive Type - Reusable no bleed olive.
Oil Type - Mineral oil
Bleed Kit - Recommendation EZMTB 2022std
Rotors size - Fits (120mm, 140 mm | 160 mm | 180 mm | 203 mm | 223 mm) With according adapter not included

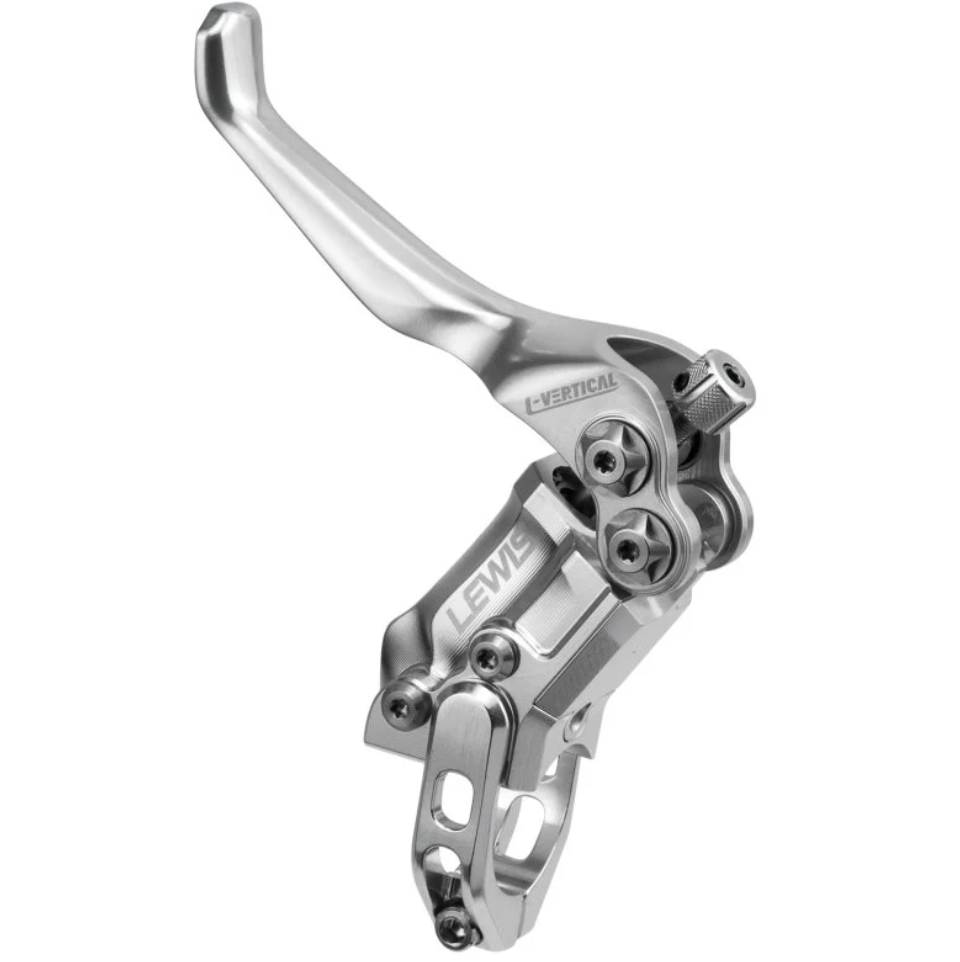

LEVER BODY
Material - CNC 7075-T6 Aluminium
Body Finish - Black, Silver, Black & Silver, customized colors
Clamp Color - Black, Silver
Clamp Type - Hinged
Screws - Stainless Steel
Adjustable lever reach - External dial
Adjustable bite point -With 2mm Allen key (special tool provided)
LEVER
Material CNC 7075-T6 Aluminium
Colors - Black, Silver, Black & Silver, customized colors
Type - 1 Finger

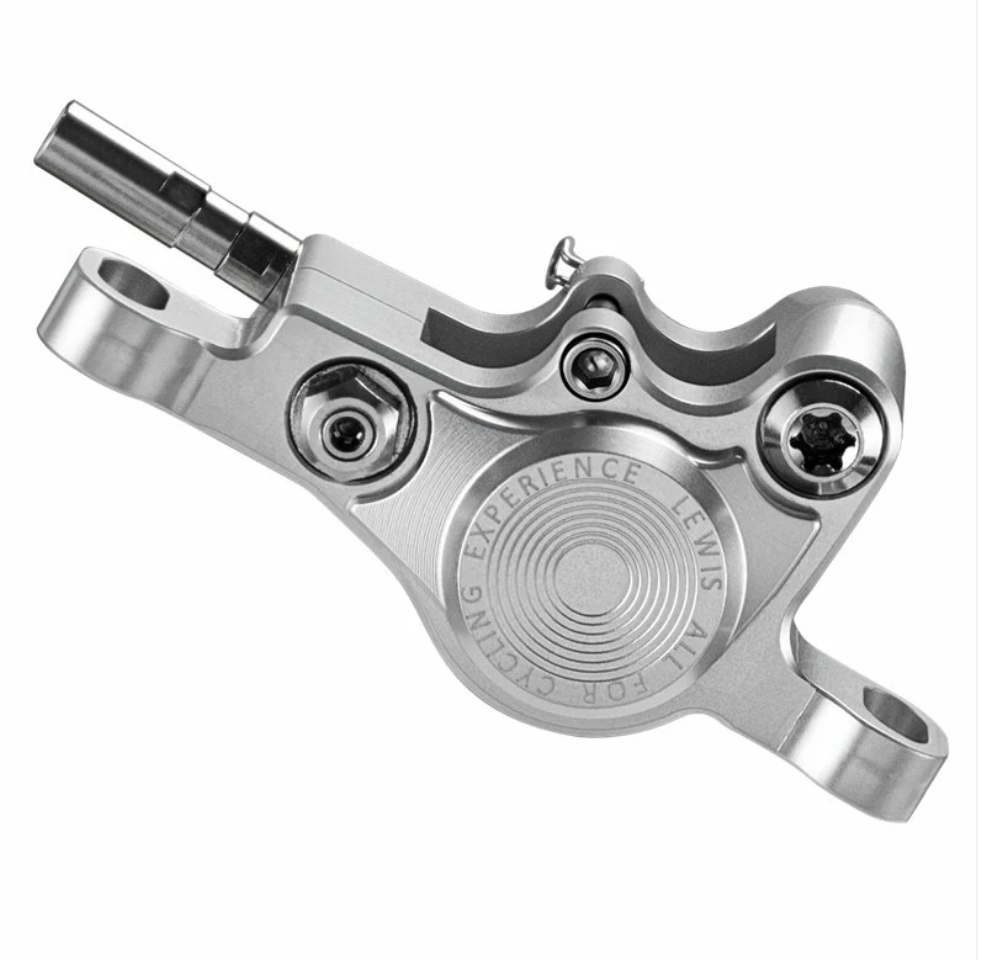

CALIPER SPECS
Material - CNC 7075-T6 Aluminium
Color Black, Silver, Black & Silver, customized colors
MOUNT TYPE - Post mount
Pistons - 2 x 21mm Stainless steel Pistons
Bolts - Stainless Steel
HOSE SPECS
Hose size - Outside Diameter 5mm,Bore 2.2mm
Hose -Black Kevlar Braided
