Supercross BMX | Supercross Shine v4- DJ / 4x Hardtail Offroad Race Frame
$ 749.95 - $ 849.95
- Overivew
- Specs
- Geometry

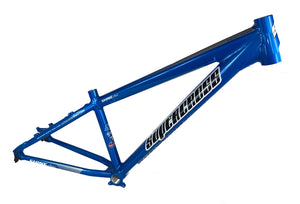

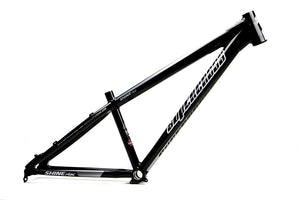

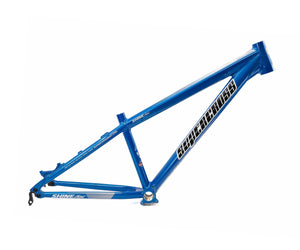

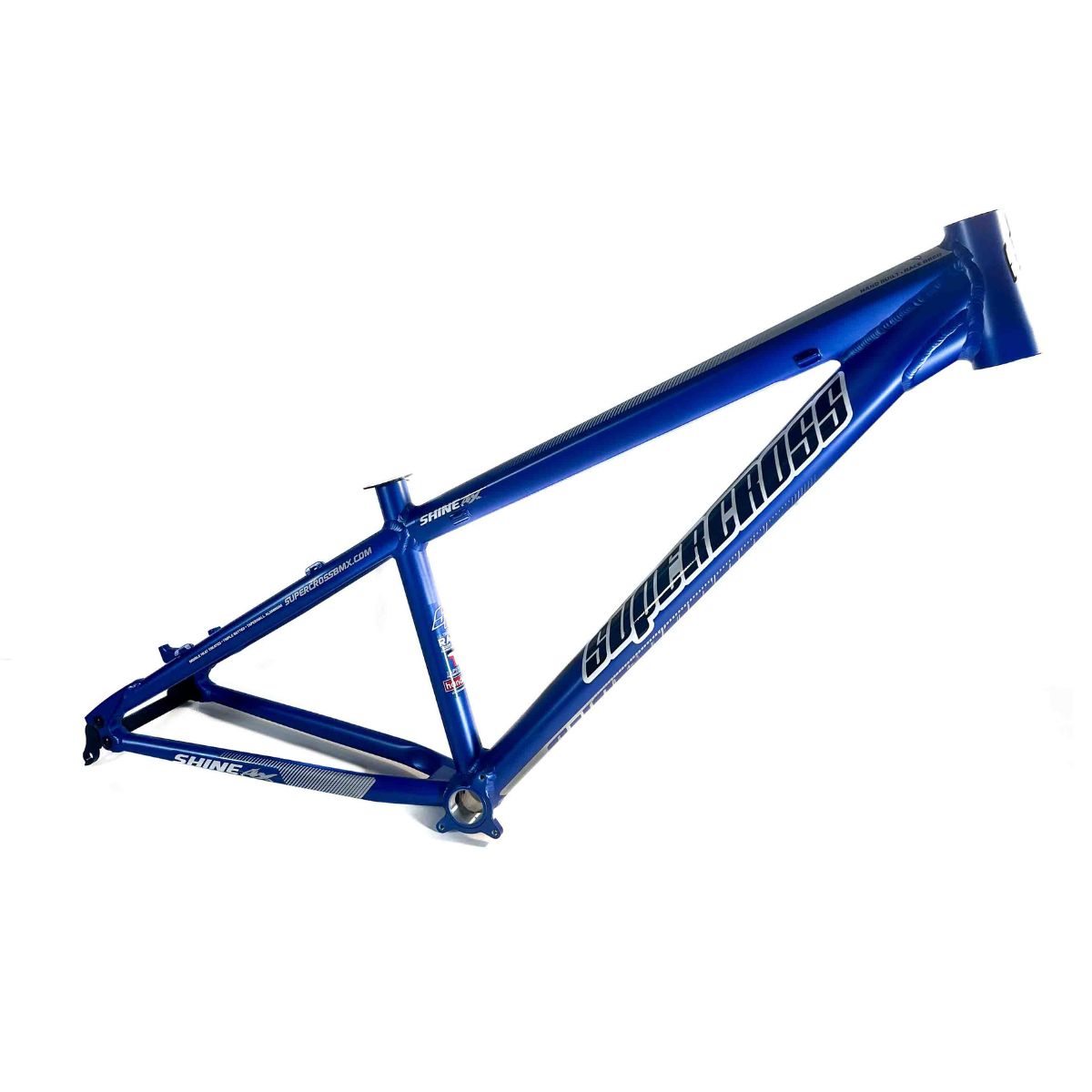

The Supercross Shine 26" 4x / DJ Race Frame
The 4th Generation of the Supercross Shine just keeps getting better. Originally designed as a 4x Race Frame, it features seamless Custom Butted and Shaped Ultra Light Aluminum tubing. The frame is then aged to a T-4 after receiving an alignment check. After ensuring the frame is true, we continue the aging process to a T-6 hardness. It's the perfect amount for Dirt Jumps, Pump Tracks, 4x Tracks, you know, all the fun stuff!

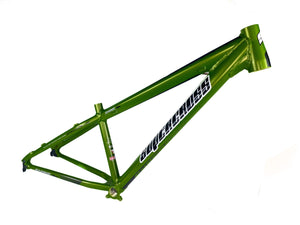

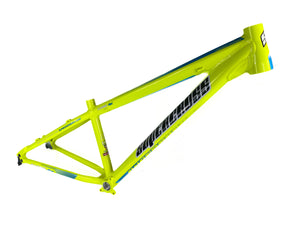

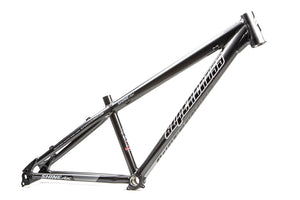

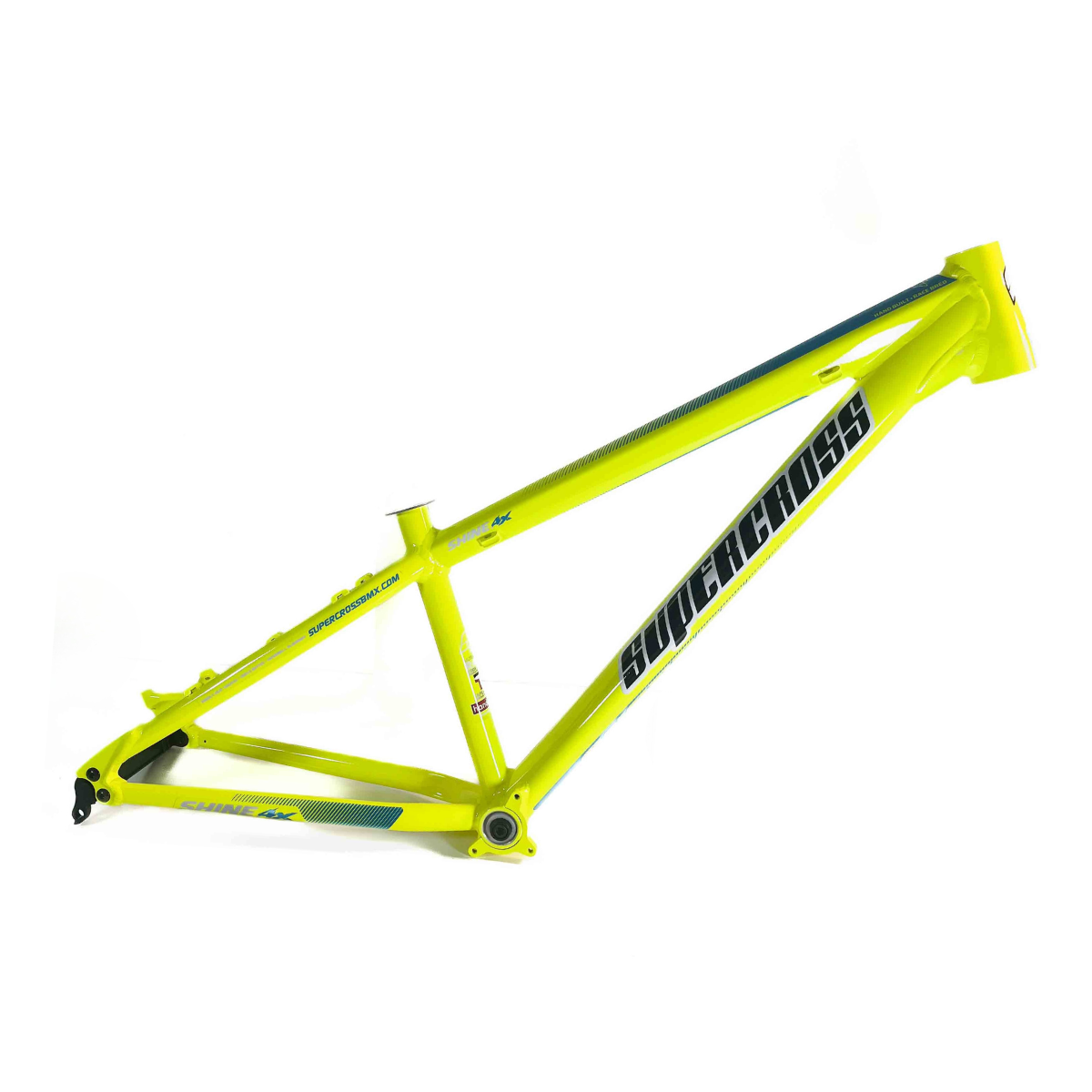

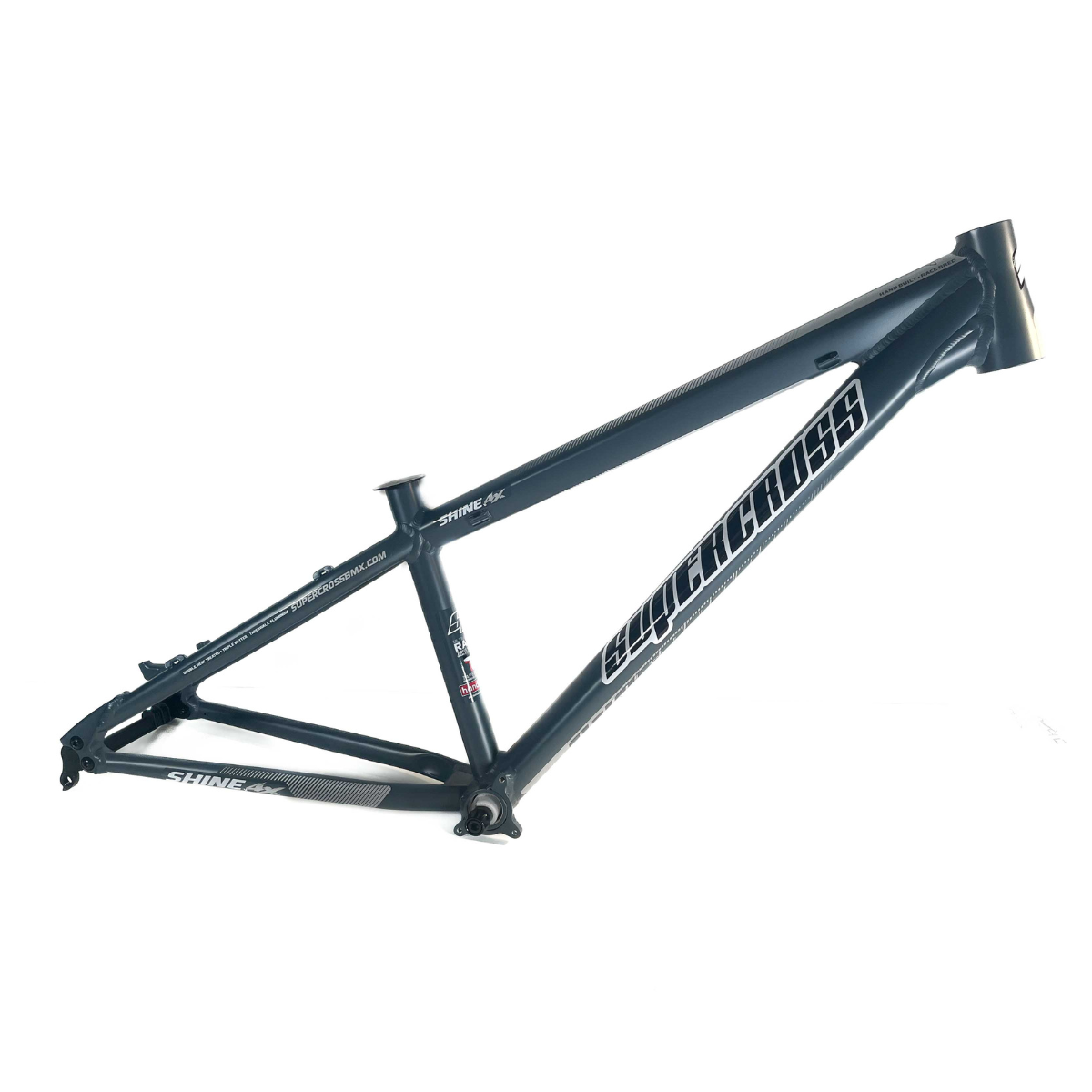

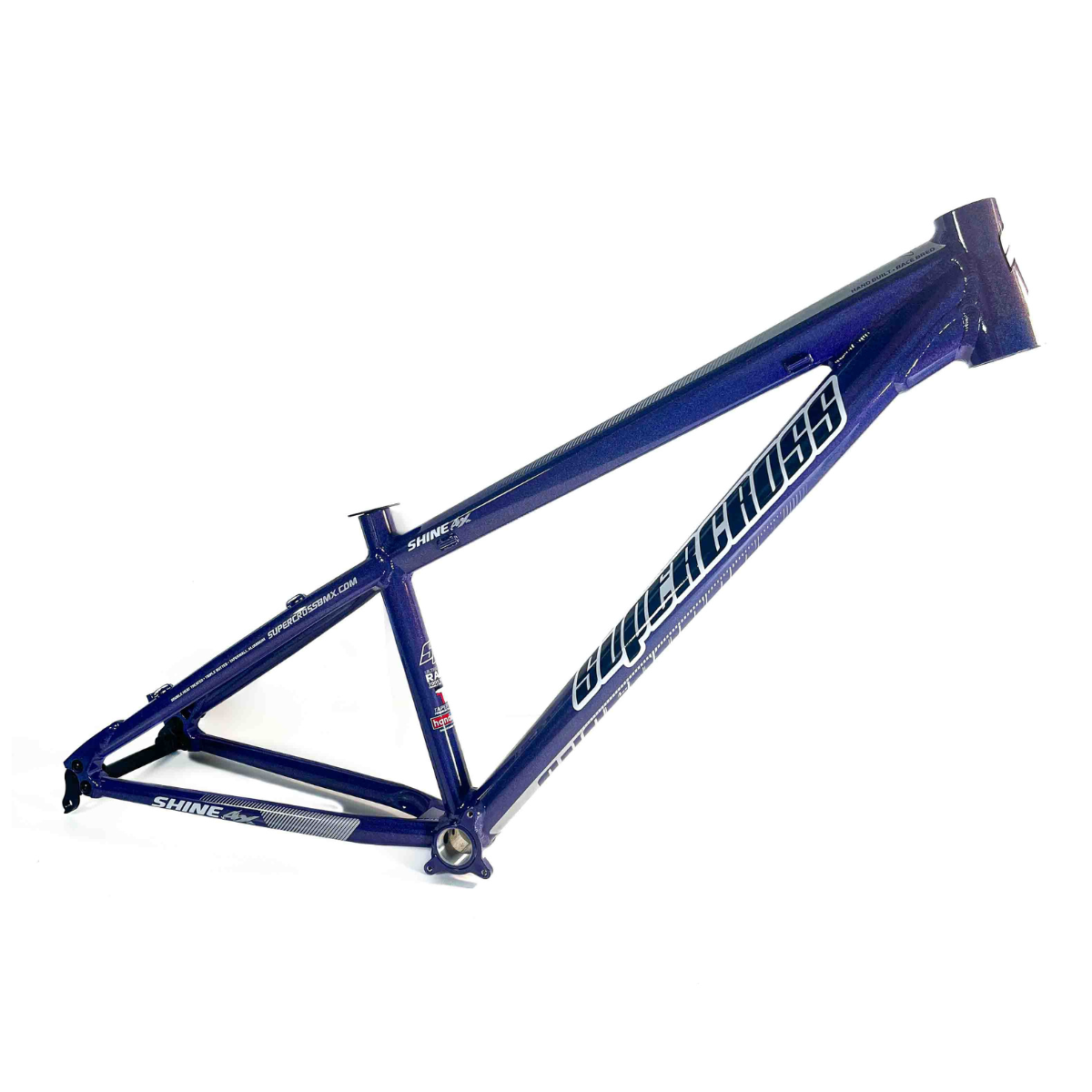

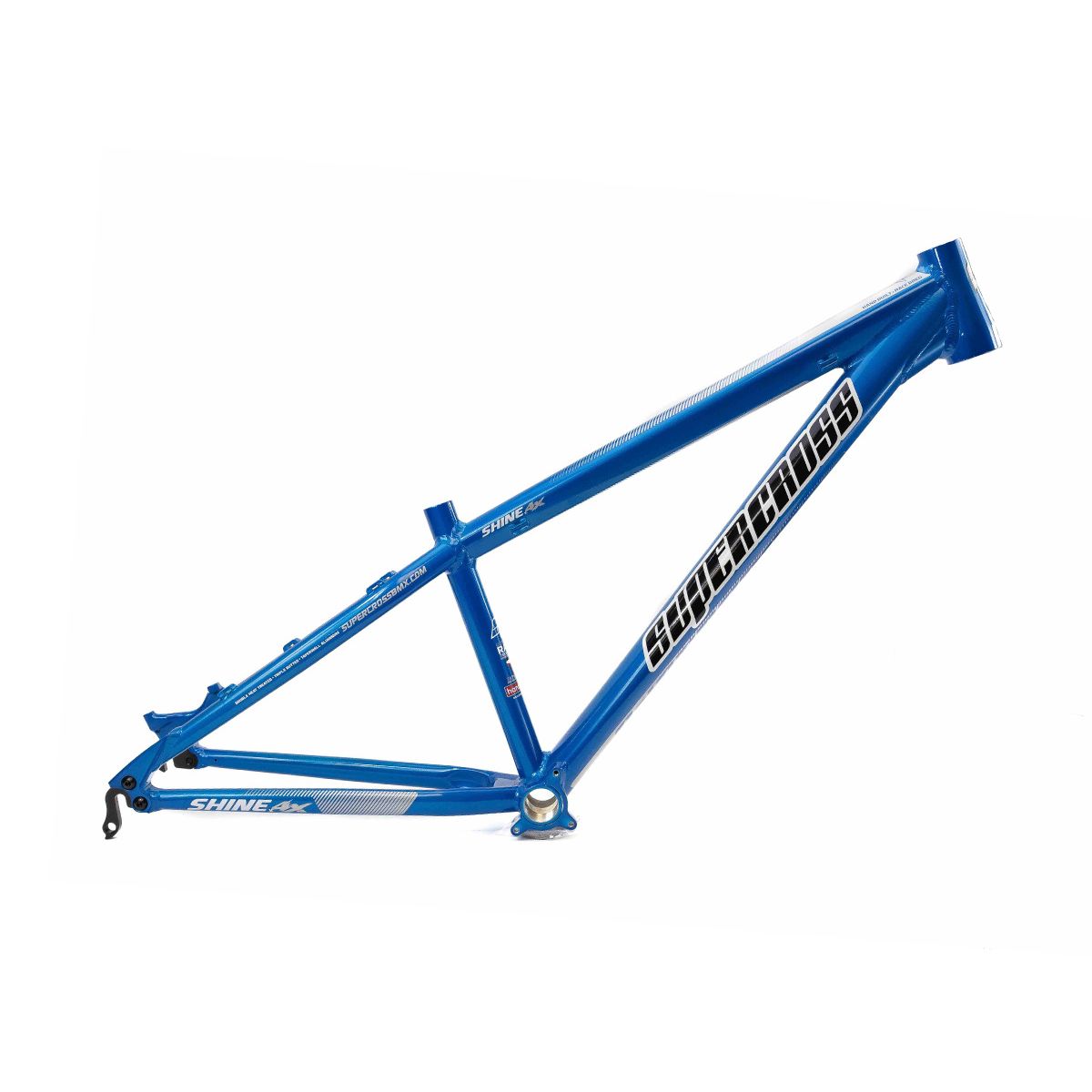

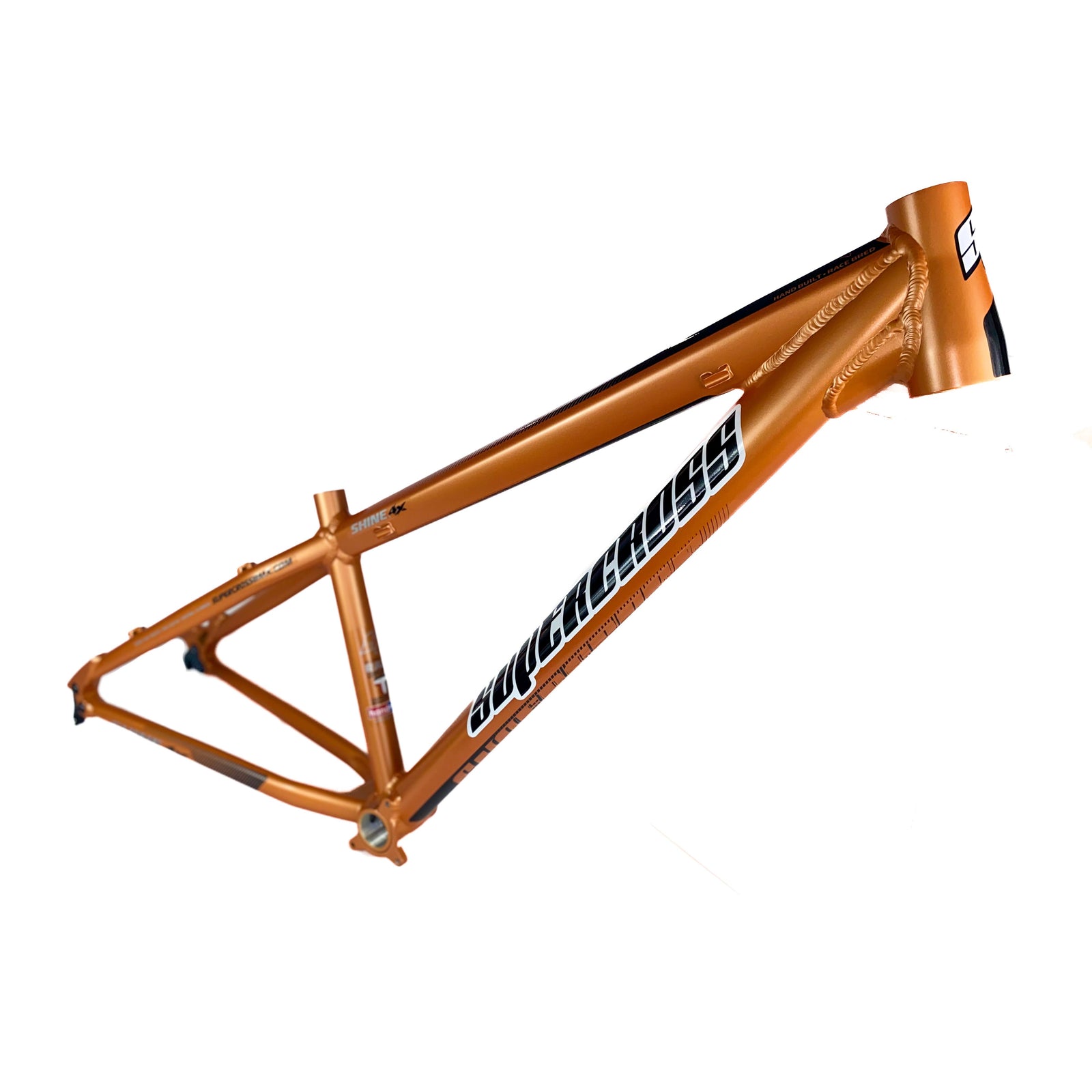

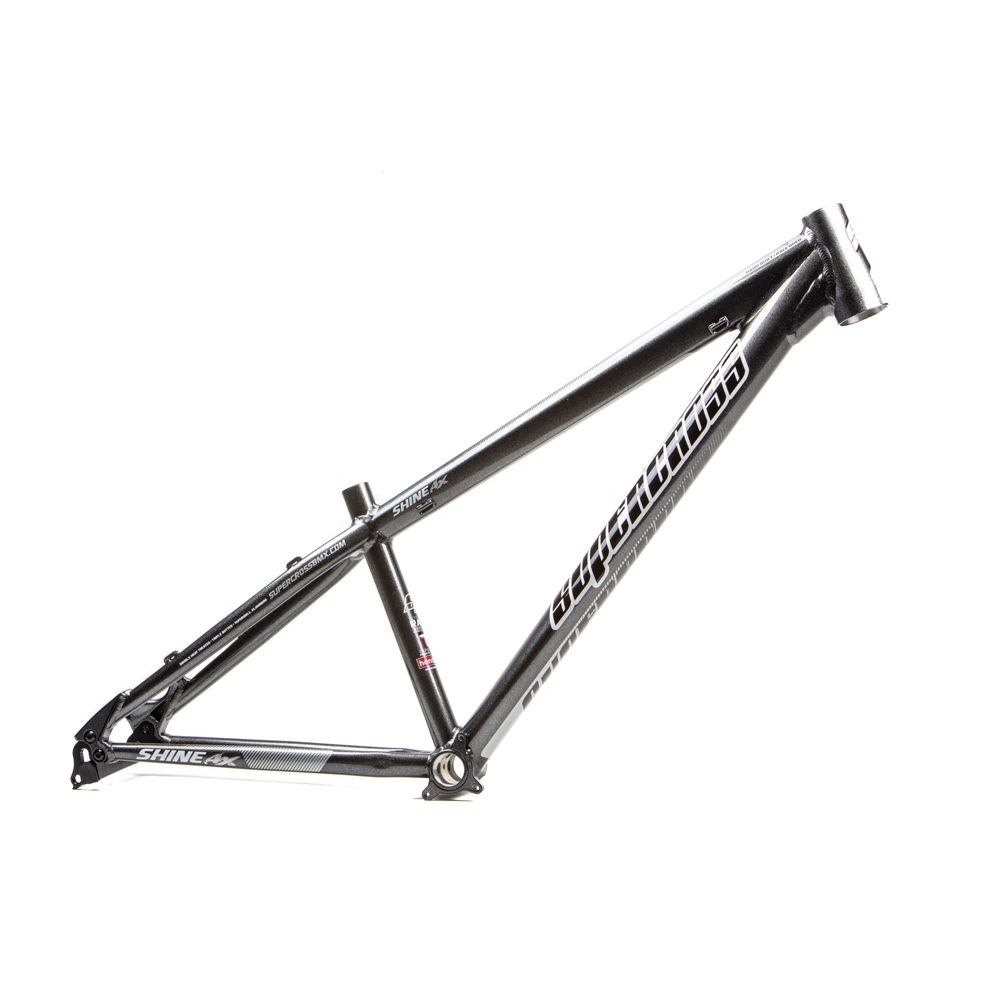

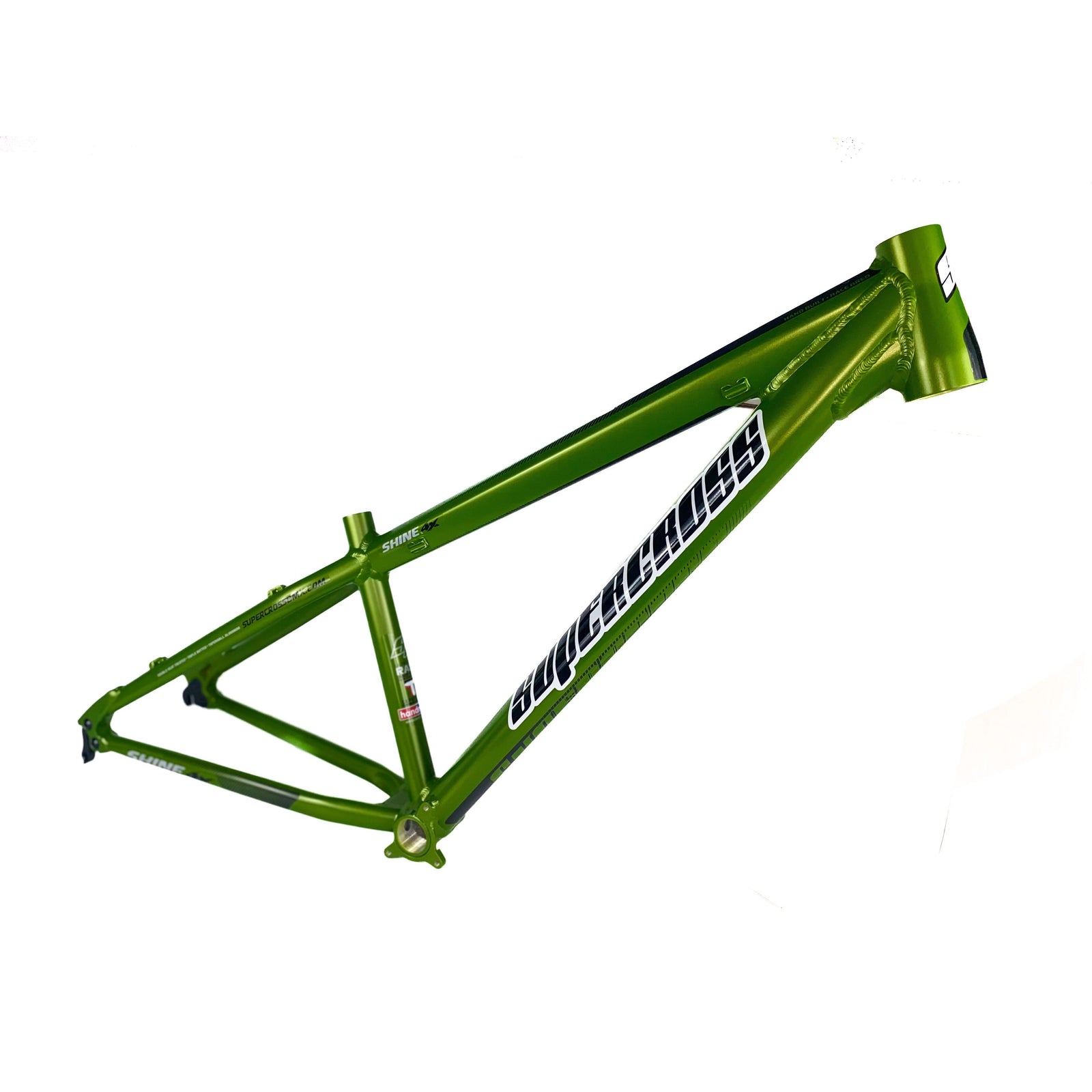

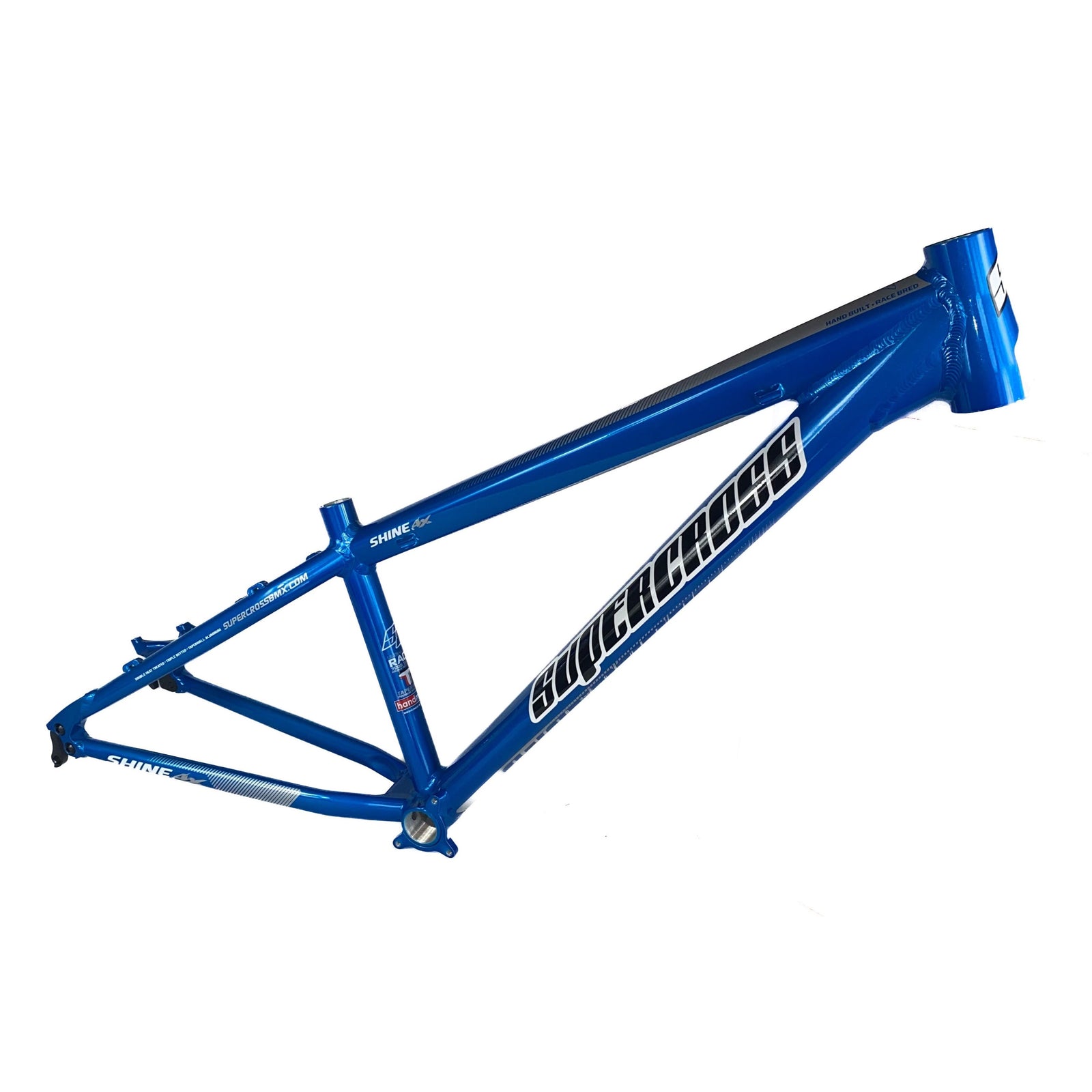

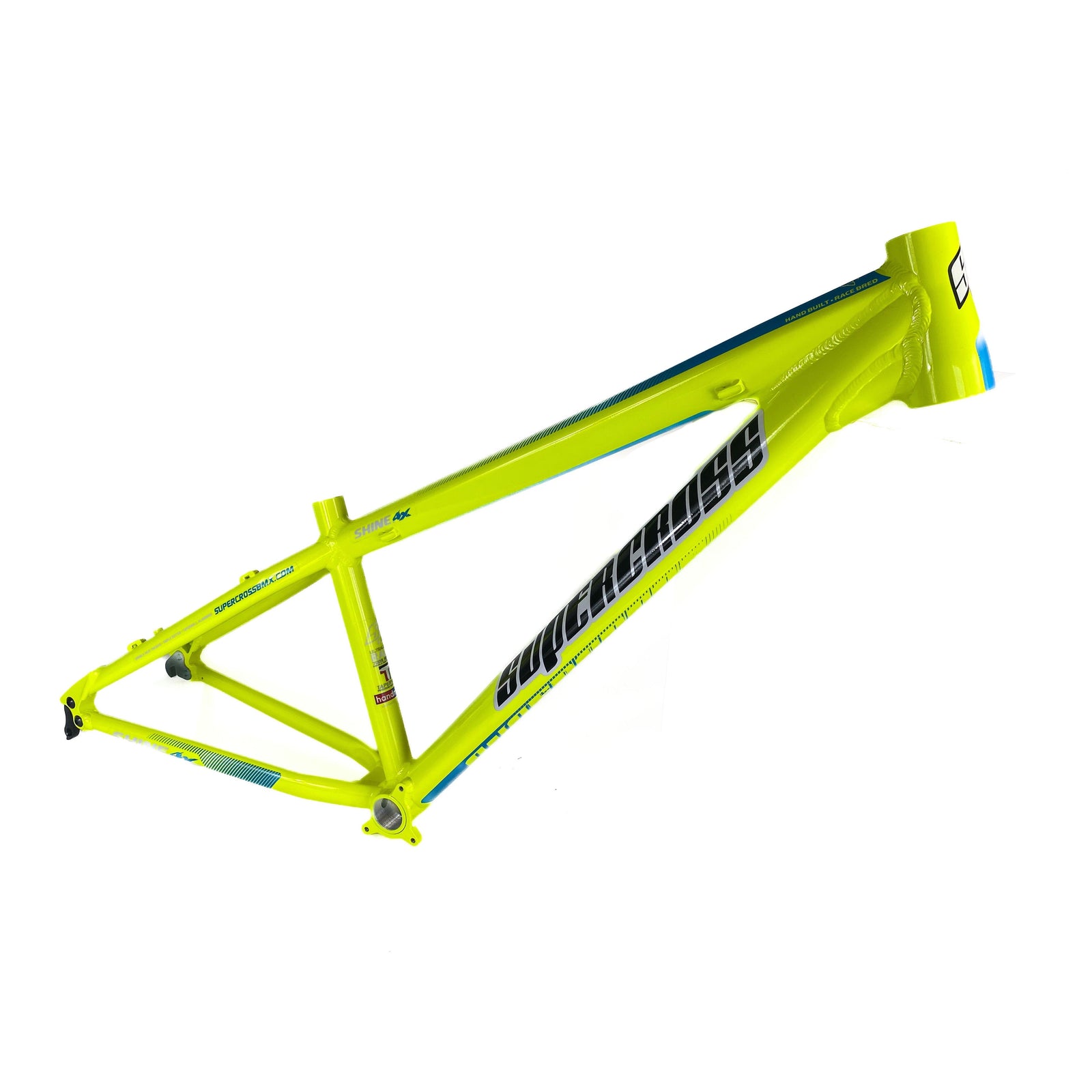

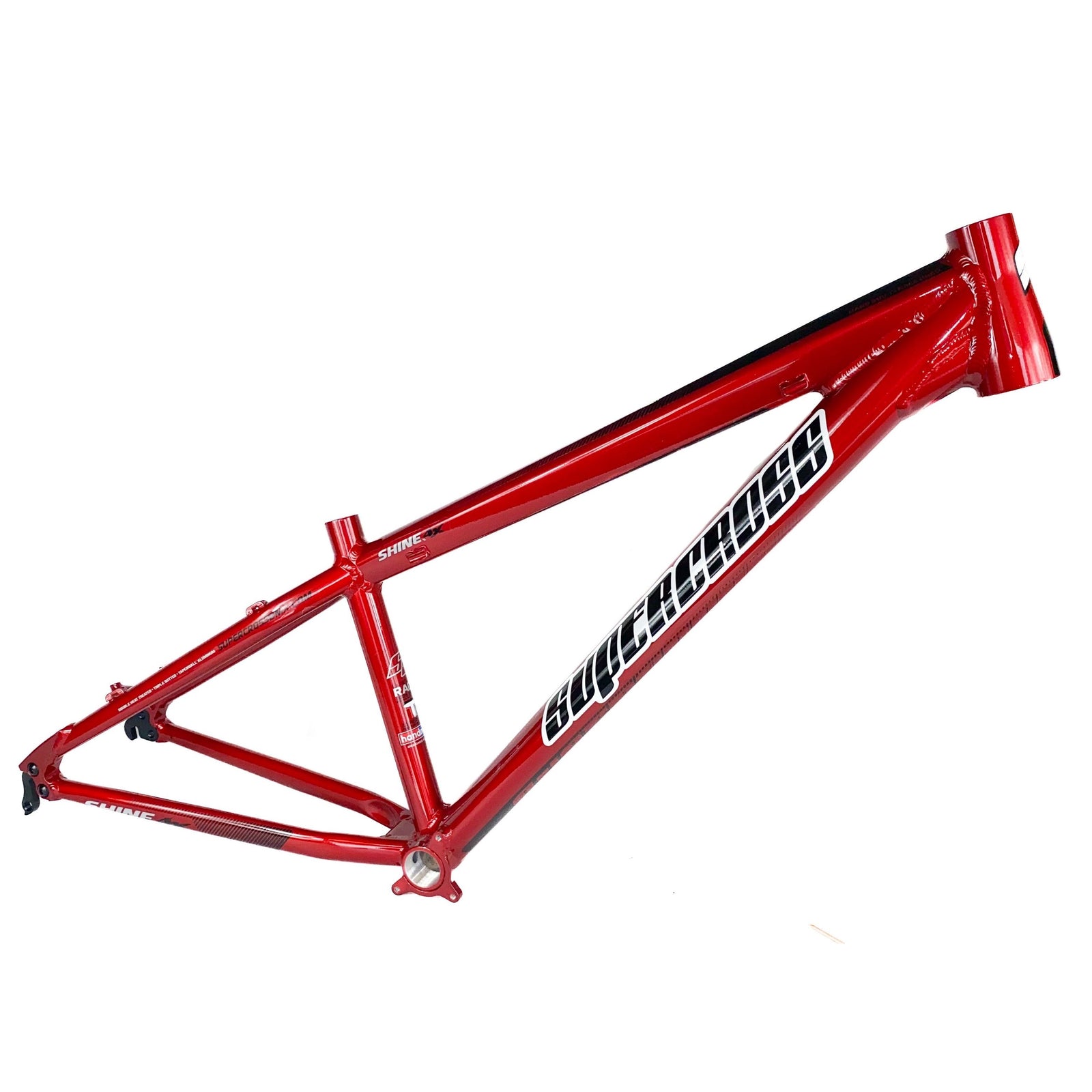

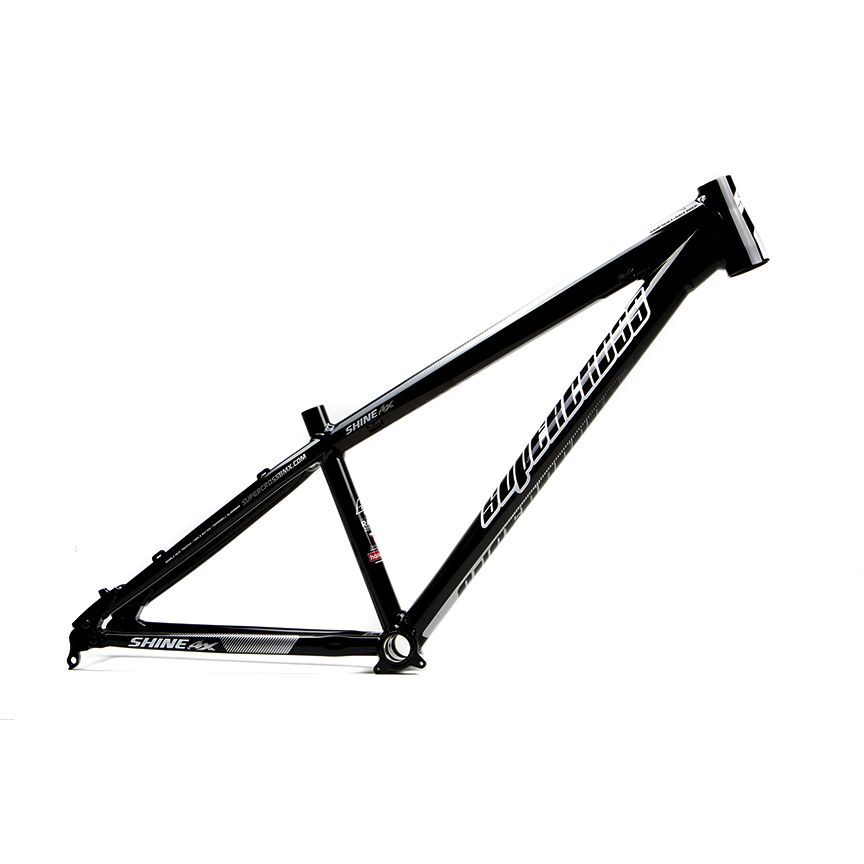

Stock colors are: Mirror Polish, Gloss Black, Matte Flame Blue, Hi-Vis Yellow and Metallic Grey with Custom Anodized and Powdercoat options available as well.
The Shine uses a new 4x specific Geometry that blends our 30 years of World Championship Winning BMX knowledge and combines it with the current crop of high-end 4x frames.

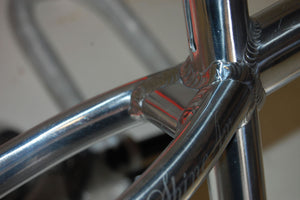

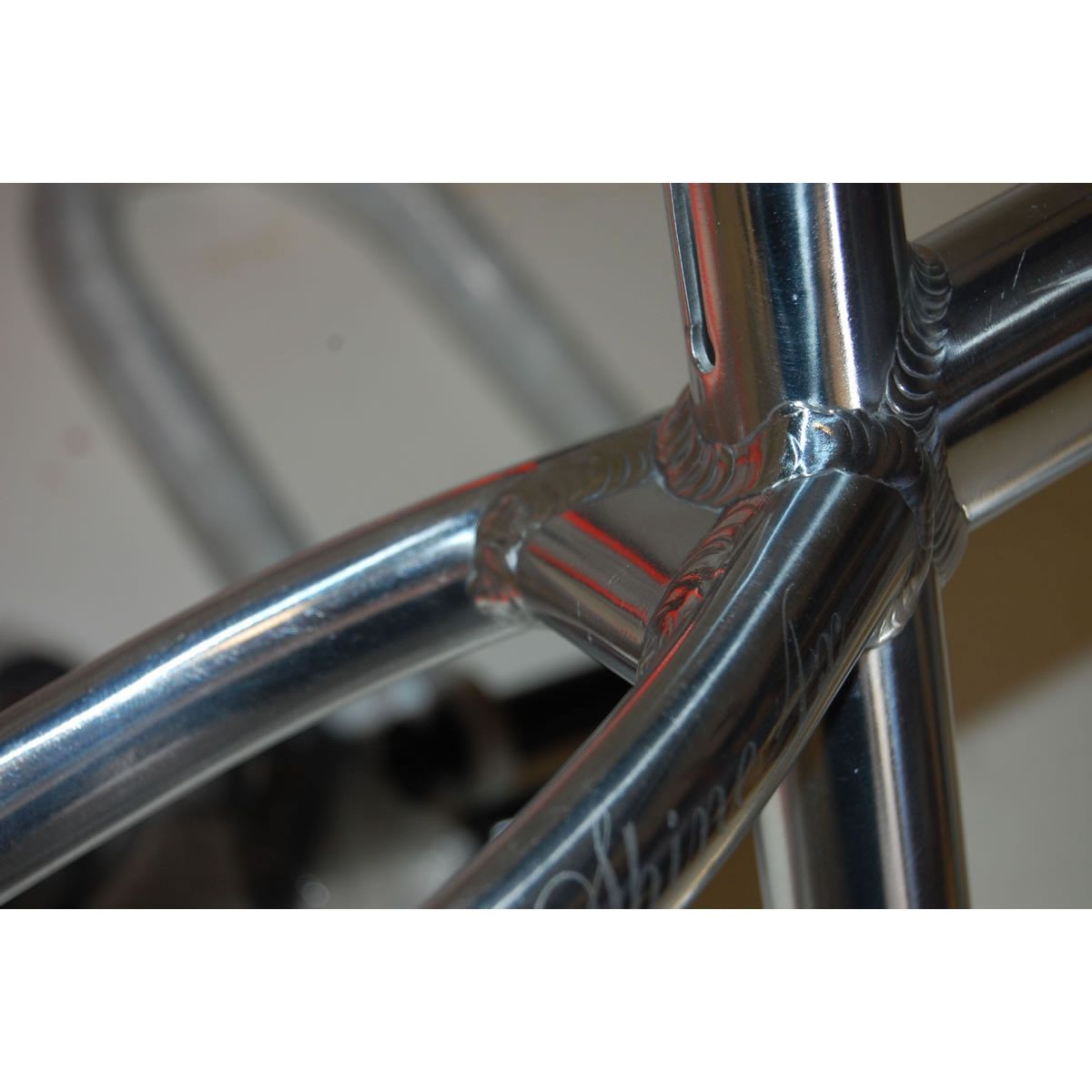

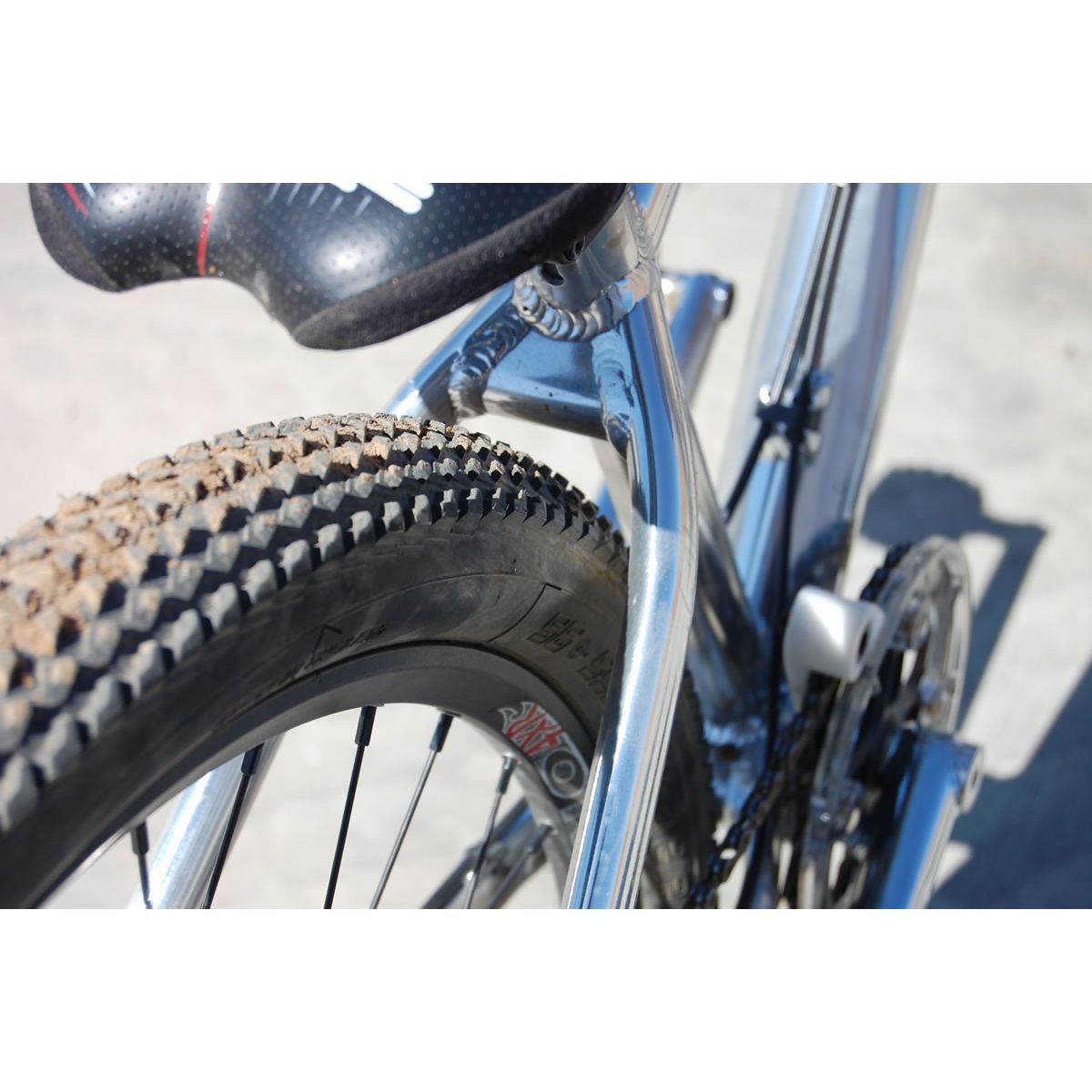

The Seatmast is only 12.75" on both the short and long sizes. This gives the Shine its beloved low-profile stance. The Seat and Chainstays are custom Butted and Shaped for maximum tire clearance and rigidity at the BB shell. But we made sure not to go too stiff so as to not ruin the Shine's ride quality.
The top and downtubes are custom-shaped and butted Easton® ULR 7005 and use our unique shaping to keep the frame strong and light.
The Headtube is a 1 1/8" - 1.5" Tapered Integrated. The Downtube has been raised on the headtube along with the addition of a gusset for extra clearance for air valves and adjusters seen on most 4x forks. The headtube is 4.5" Tall, typical BMX style.

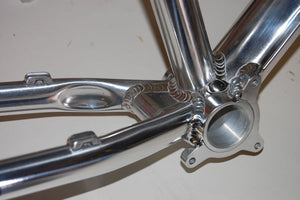

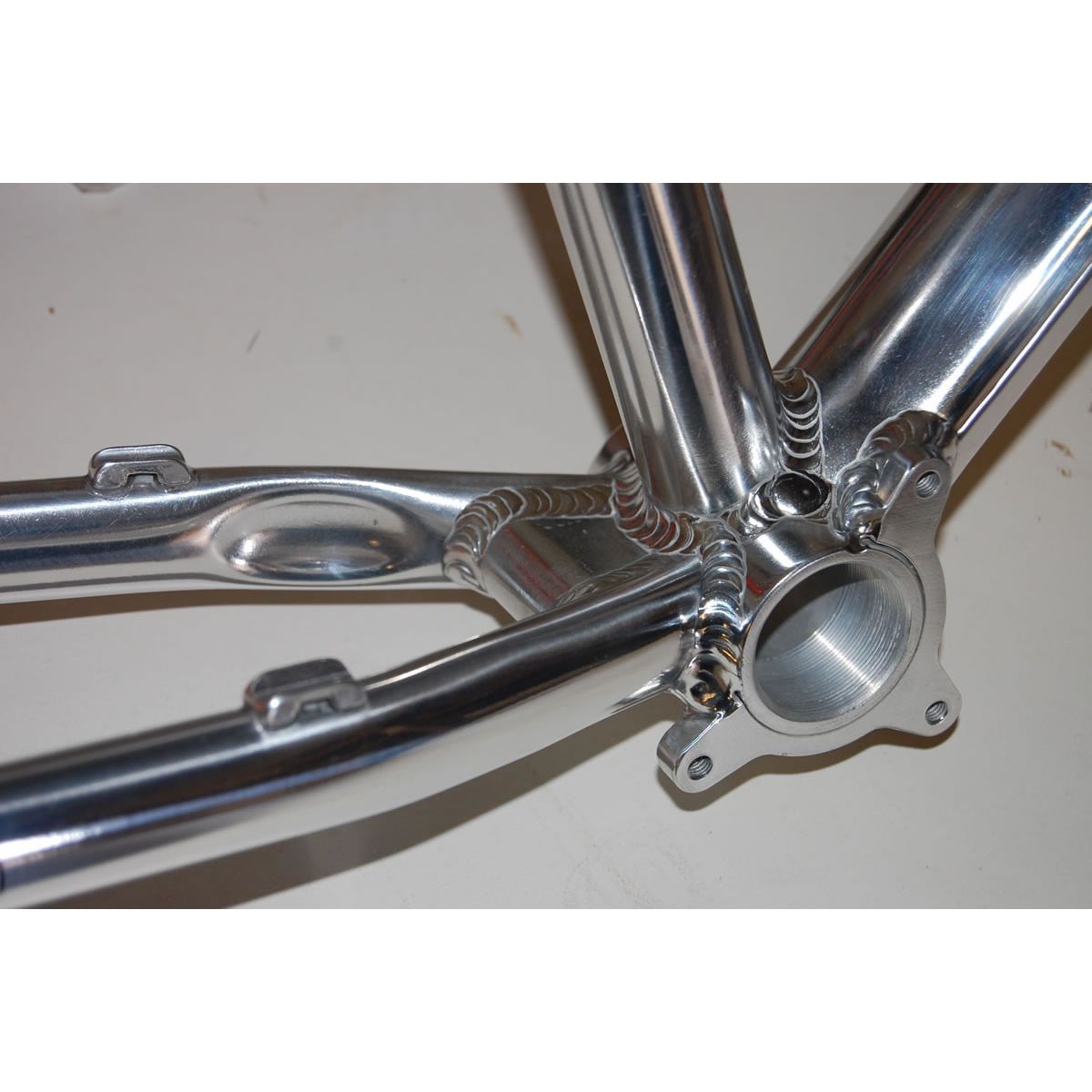

The BB shell is a CNC'd 73mm wide Euro Threaded shell and features welded-on ISCG tabs allowing for easy drive train alignment.

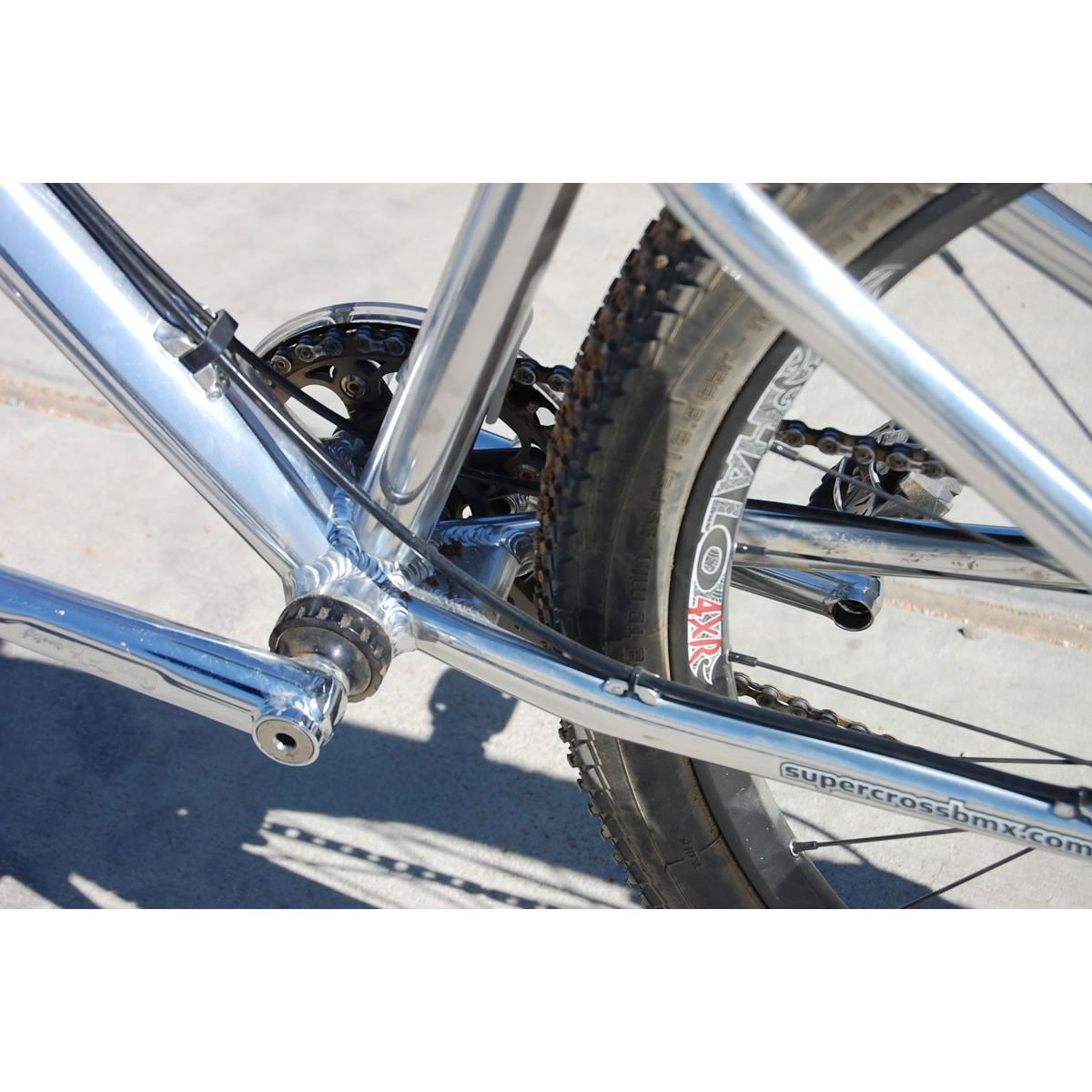

All cable routing runs low and on the inside of the frame to keep it safe from anything kicked up on the course.

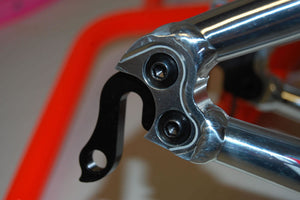

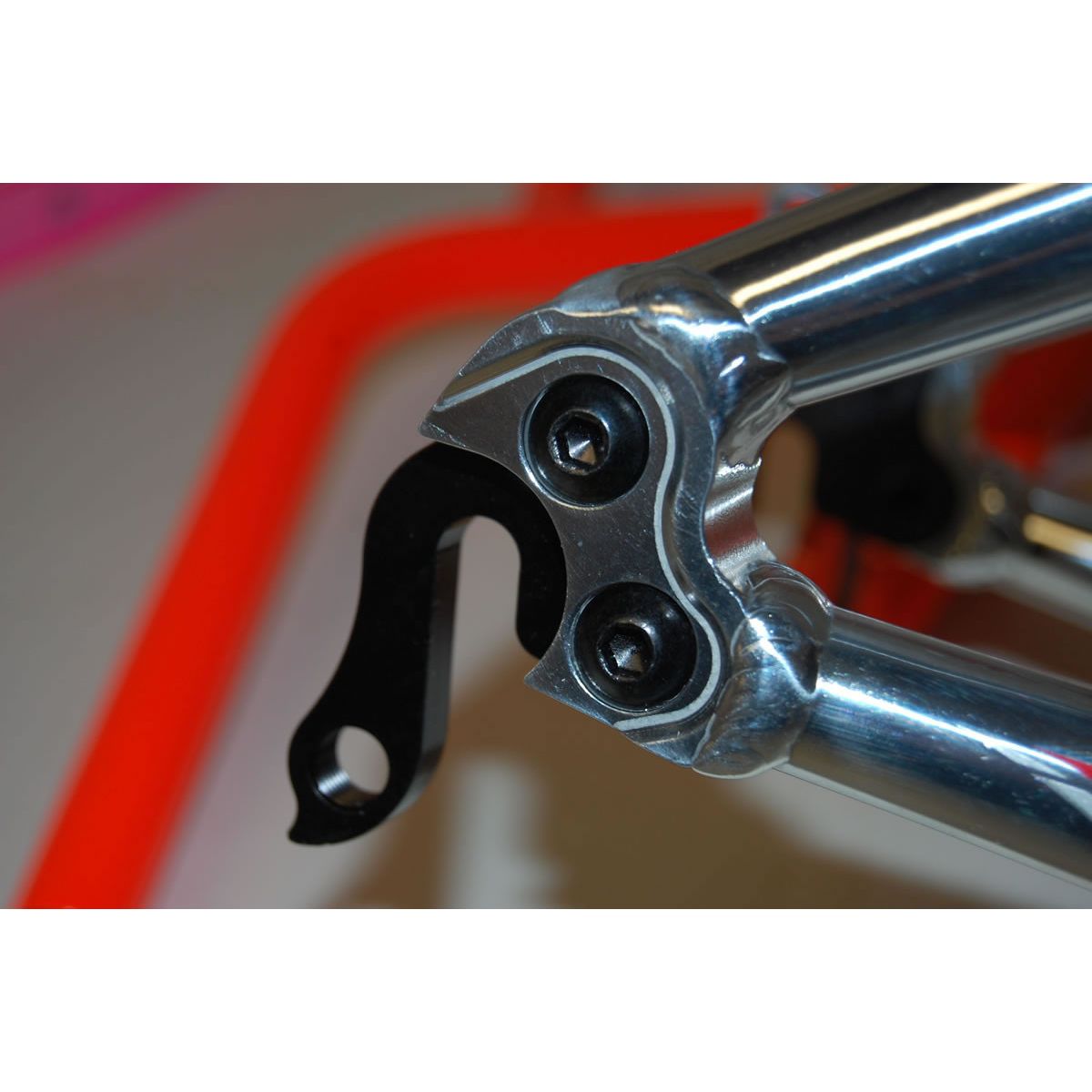

At the back of the frame, we use a Vertical/Adjustable dropout. Vertical dropouts assure that your Disk Brake and Rear Derailleur will always be in perfect relation to your rear axle. But with the addition of adjustability, you can run the Shine as a single speed. And for the hardcore out there, you can adjust the wheelbase on a multispeed setup to ensure you get the most out of your ride no matter the conditions. There is a full inch of adjustment on these dropouts.
We are starting production in 3 stock 26" Wheel sizes
- Short: 21.75" Top tube
- Long: 22.75" Top tube
- XL: 23.15" Top tube
We're introducing a 24" Wheel Size. This 24" Version is designed for a 406mm Axle to Crown Fork.
GEOMETRY
| Size | A | B | C | D | E | F | Seat Post Size | Wheel Size |
| 24" Wheel | 20.21" | 14.17" | 71º | 70º | 11.5 | 16" | 27.2mm | 24 X 2.3 |
| 26" Wheel Short | 21.75" | 16" | 69.5º | 71º | 12.1" | 16" | 27.2mm | 26 X 2.3 |
| 26" Wheel Long | 22.75" | 16" | 69.5º | 71º | 12.1" | 16" | 27.2mm | 26 X 2.3 |
| 26" Wheel Xtra Long | 23.15" | 16" | 69.5º | 71º | 12.1" | 16" | 27.2mm | 26 X 2.3 |
Maintenance Information
Something not right? Use our warranty claim form to file a claim. We'll do everything we can to get you back to riding as fast as possible.
Shine V4 Tech Support
| Frame | Shine V4 DJ / 4x Hardtail Offroad |
| Fork | 100-160mm |
| Headset | 1 1/8² - 1.5 Tapered Campy Integrated |
| Saddle | 27.2mm Seatpost and 31.9 (31.8)mm 1 1/4² Seat Clamp |
| Handlebars | N/A |
| Chainring Crank | N/A |
| Bottom Bracket | N/A |
| Wheels | N/A |
| Hubs | N/A |
| Tires | Max 26 x 2.5² |
| Brakes | 160mm Post Mount |
| Pedals | N/A |
What are the dropout specs?
The Shine V4 dropout types are: 135 x 9 (Horizontal BMX Style and 142 x 12 Styles Optional)
Can I mount a chainguide to my bike?
The Shine V4 accepts: ISCG-05 tabs for easy chainguide mounting. Most chainguides on the market that are made for this standard should work
